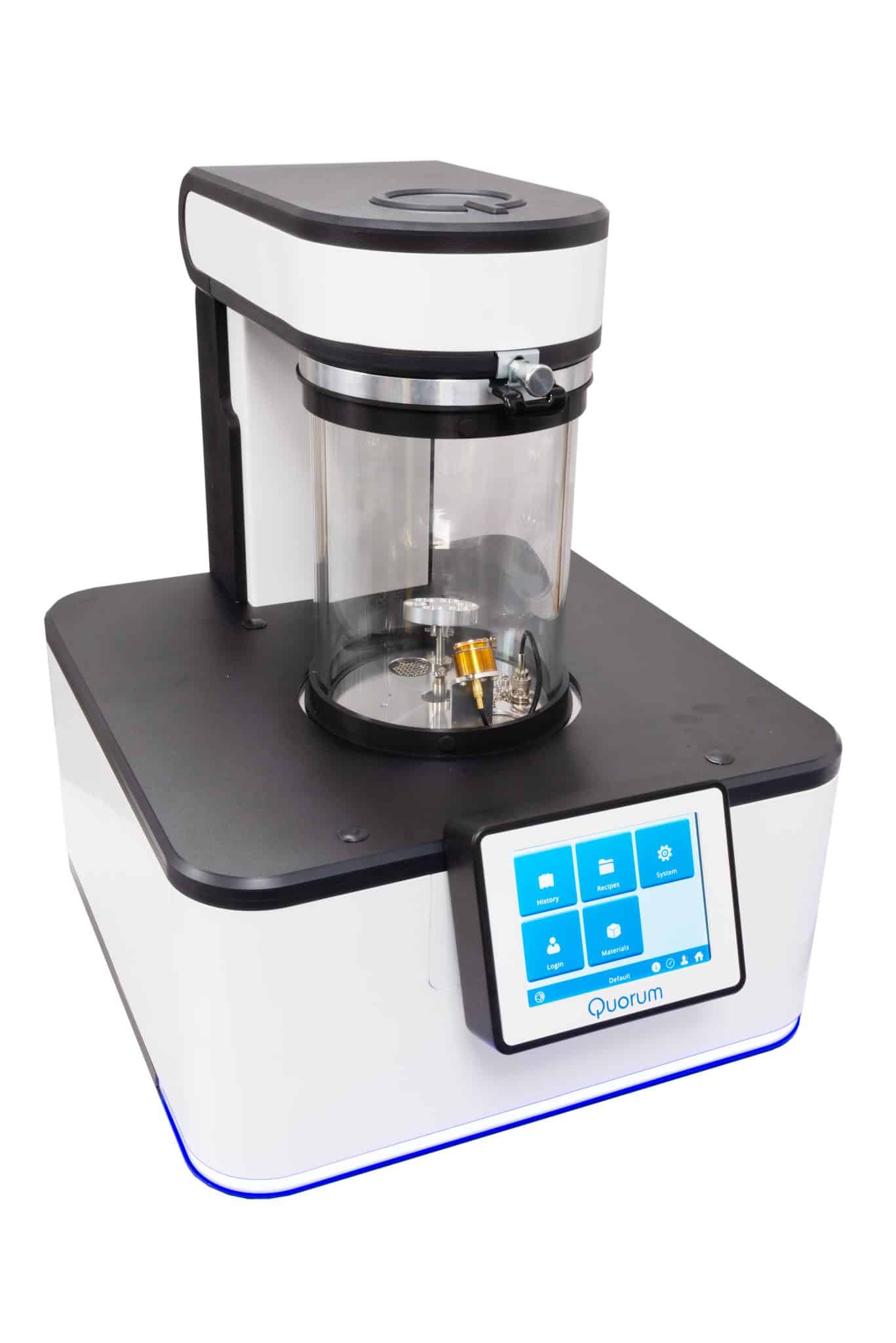

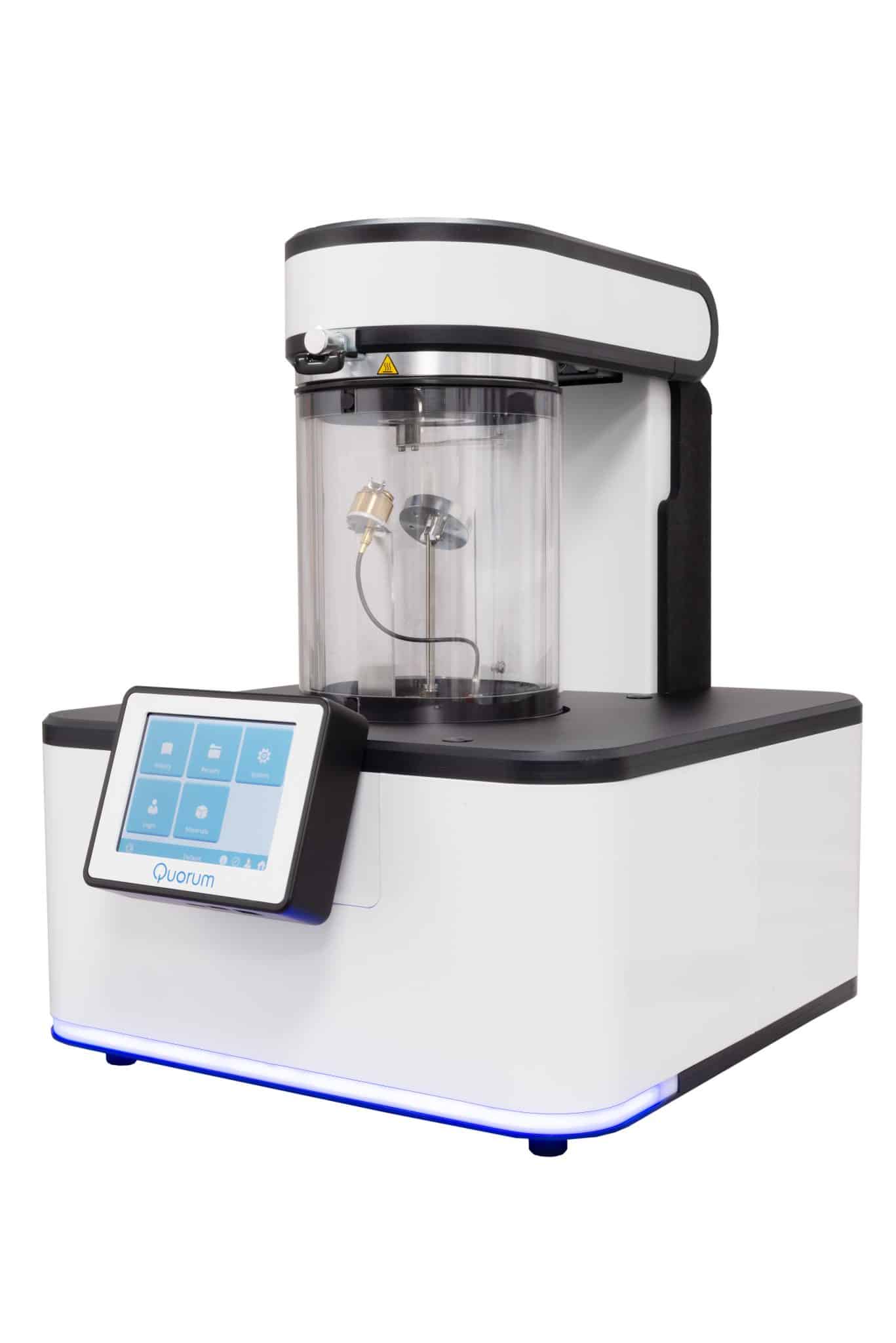

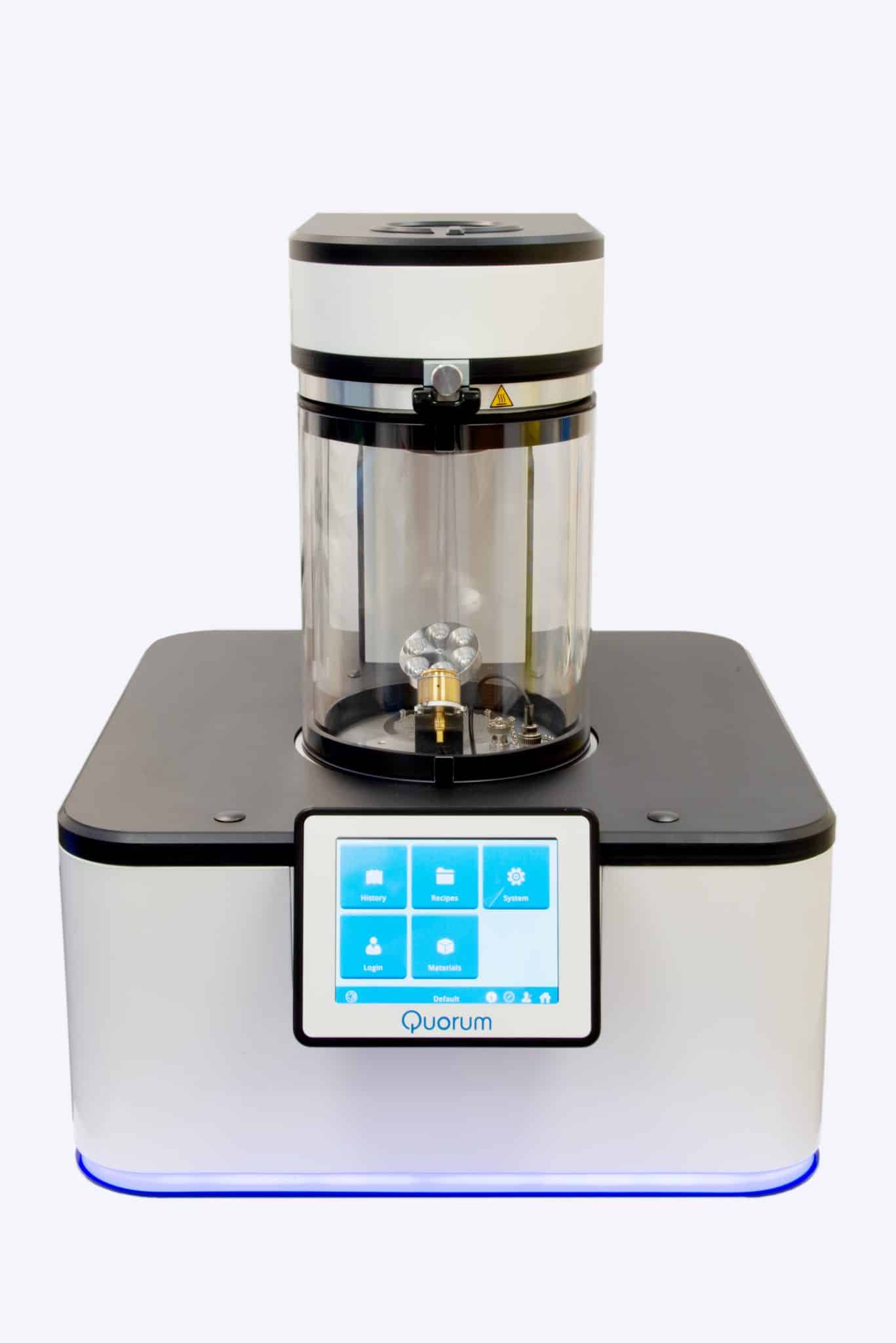

Quorum RotaQ Sputterointi-/pinnoituslaite

Quorum RotaQ sputterointi-/hiilestyslaite on automaattinen, rotary pumpulla varustettu pinnoituslaite, joka on suunniteltu monipuoliseen käyttöön elektronimikroskooppinäytteiden näytteenvalmistuksessa. Laitteistosta löytyy kolme erilaista konfiguraatiota riippuen käyttäjän tarpeesta.

RotaQ E – Hiilestyslaitteisto hiilipinnoitukseen joko hiililangalla tai hiilitangolla.

RotaQ S – Sputterointilaitteisto metallipinnoitukseen erityisesti ei-oksidoituvien metallien kanssa, kuten kulta (Au), kulta-palladium (Au-Pd), platina (Pt), platina-palladium (Pt-Pd), palladium (Pd) ja hopea (Ag)

RotaQ ES – yhdistelmälaitteisto sputterointiin ja hiilipinnoitukseen. Hiilipinnoitus tehdään joko hiililangalla tai hiilitangolla ja sputteroinnissa hyödynnetään erityisesti ei-oksidoituvia metalleja kuten kulta (Au), kulta-palladium (Au-Pd), platina (Pt), platina-palladium (Pt-Pd), palladium (Pd) ja hopea (Ag).

RotaQ E

The RotaQ E is an automated and versatile rotary pumped coater offering unparalleled ease of use. Recommended for sample preparation for the examination of specimens using Electron Microscopy (EM). The rotary pumped carbon coater is suitable for use with Tungsten/LaB₆ SEM and Benchtop SEM.

Recommended for low-medium magnification
Suitable for use with Tungsten/LaB₆ SEM and Benchtop SEM
Capable of carbon fibre evaporation (carbon rod evaporation available as option)
Rapid cycle time for maximum sample throughput
Tilt stage design giving uniform coating of complex 3D structures
Film Thickness Monitor (FTM) to control deposition of coating
Intuitive and responsive touchscreen colour panel design
Multi-colour LED visual status indicator offering process updates
Pre-set recipes for standard protocols resulting in sample reproducibility
Customizable recipes for tailored applications
Easy and quick set-up of profiles
Multiple stage options based on application needs

RotaQ S

The RotaQ S is an automated and versatile rotary pumped coater offering unparalleled ease of use. Recommended for sample preparation for the examination of specimens using Electron Microscopy (EM). The Rotary pumped coater is suitable for use with Tungsten/LaB₆ SEM and Benchtop SEM.

The RotaQ S is an automatic sputter coater for noble metals. Available sputtering targets include Au, Au/Pd, Pd, Ag, Pt/Pd

Recommended for low-medium magnification
Suitable for use with Tungsten/LaB₆ SEM and Benchtop SEM
Sputter coater for noble metals. Au target offered as standard. Au/Pd, Ag, Pt, Pt/Pd available as options.
Rapid cycle time for maximum sample throughput
Tilt stage design giving uniform coating of complex 3D structures
Film Thickness Monitor (FTM) to control deposition of coating
Intuitive and responsive touchscreen colour panel design
Multi-colour LED visual status indicator offering process updates
Pre-set recipes for standard protocols resulting in sample reproducibility
Customizable recipes for tailored applications
Easy and quick set-up of profiles
Multiple stage options based on application needs

RotaQ ES

The RotaQ ES is an automated and versatile rotary pumped coater offering unparalleled ease of use. Recommended for sample preparation for the examination of specimens using Electron Microscopy (EM). Suitable for use with Tungsten/LaB₆ SEM and Benchtop SEM.

The RotaQ ES is a combined system capable of both sputtering and carbon coating. The deposition head inserts can be swapped to allow for Metal evaporation and Glow Discharge.
