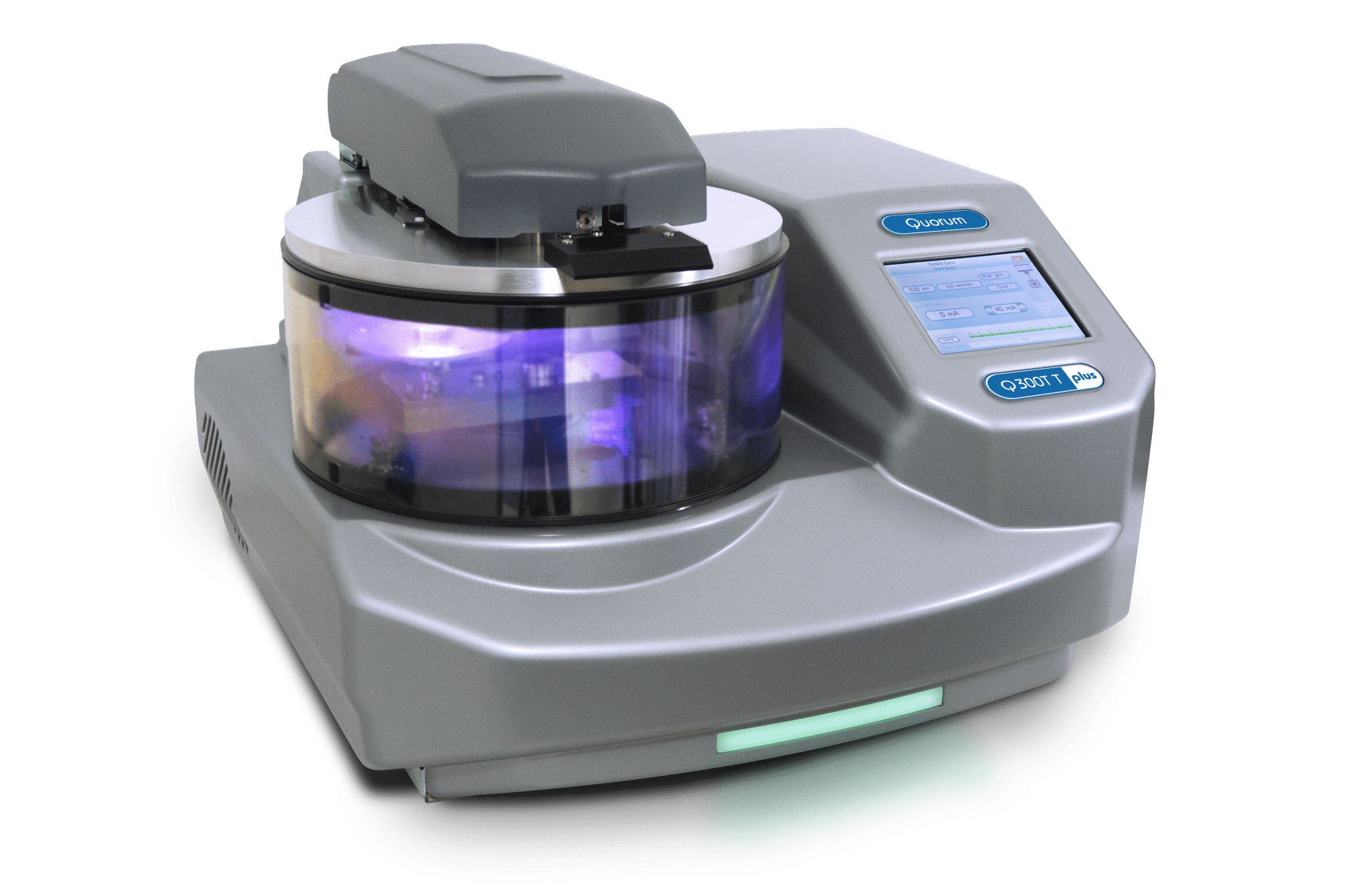

The Q300T T Plus is a large chamber, turbo-pumped coating system, ideally suited for sputtering a single large diameter specimen up to 8″/200mm or multiple smaller specimens over a similar diameter. Ideal for thin-film applications and SEM/FE-SEM. It is fitted with three sputtering heads to ensure even deposition of individual large specimens or multiple specimens
- Capable of achieving vacuum of 5×10⁻⁵ mbar
- Triple sputter head allows coating of samples up to 200 mm Ø
- Touch and swipe capacitive screen
- USB port for upgrades and download of process log files
- Multiple-user profiles can be set up on one instrument
- 16GB of memory can store more than 1000 recipes
- Multi-colour LED visual status indicator
- 3 x Chromium target as standard
- Capable of sputtering non-oxidizing and oxidizing metals e.g. Cr, Ir, W, Al, Ti, Au, Pt
