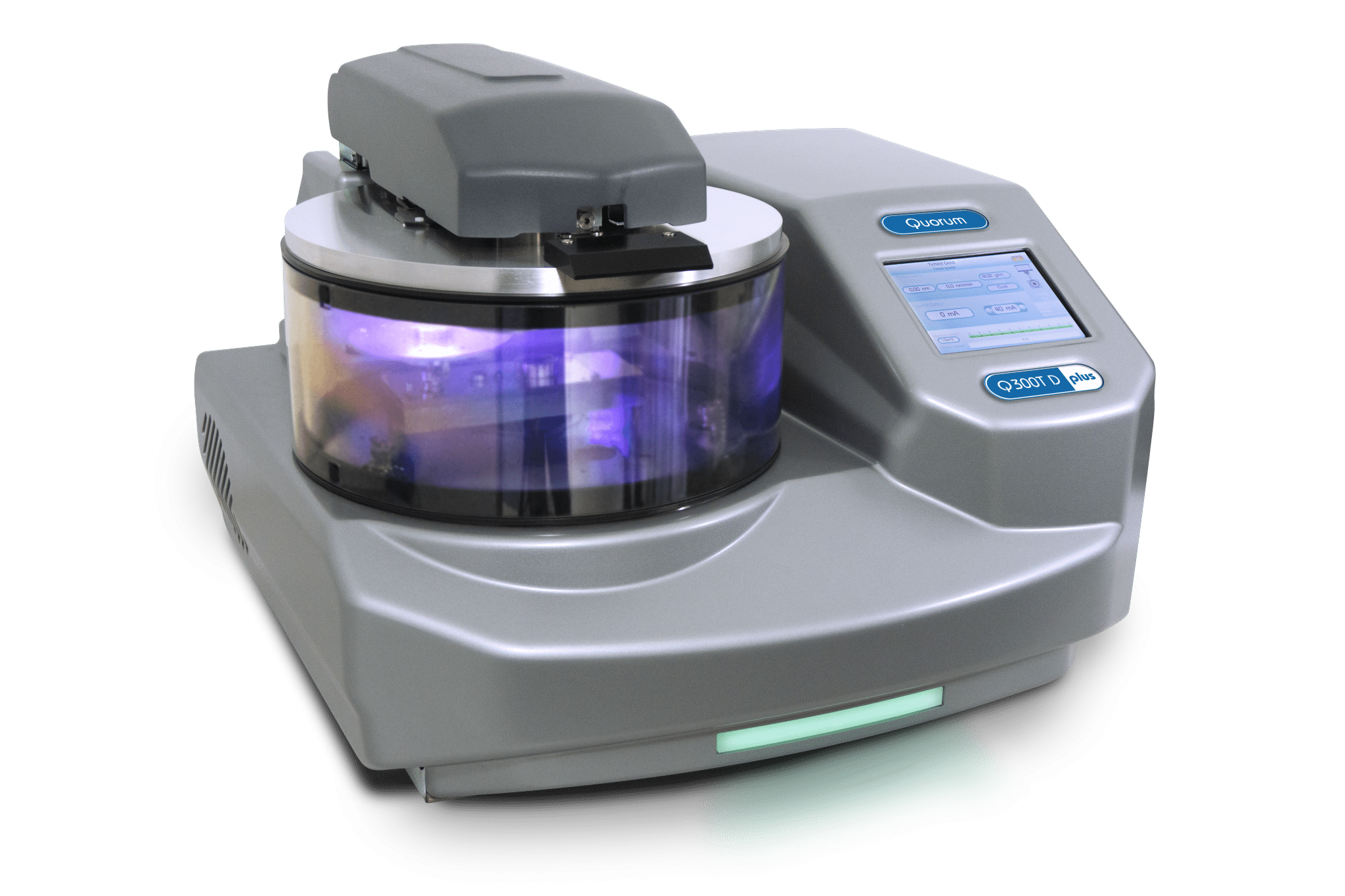

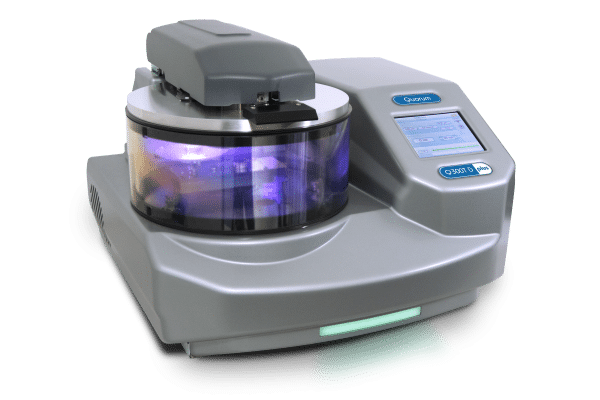

Suitable for multi-layer sequential sputtering of two materials, the Q300T D Plus has two independent sputtering heads, which allows sequential sputtering of two metals without the need to break vacuum. The system is fully automated with user defined recipes controlling the pumping sequence, time, number of sputter cycles, and the current used during the process. Unlimited layers of varying thickness from two target materials can be sputtered sequentially by cycling between both targets. When not in use the targets are shuttered for protection from contamination
- Capable of achieving vacuum of 5×10⁻⁵ mbar
- Dual sputter head dual allows sequential coating of samples, up to 150 mm Ø, with two different metals without breaking vacuum
- Touch and swipe capacitive screen
- USB port for upgrades and download of process log files
- Multiple-user profiles can be set up on one instrument
- 16GB of memory can store more than 1000 recipes
- Multi-colour LED visual status indicator
- 1 x Chromium target and 1 x Gold target as standard
- Capable of sputtering non-oxidizing and oxidizing metals e.g. Cr, Ir, W, Al, Ti, Au, Pt
